UI Orientation

---

General

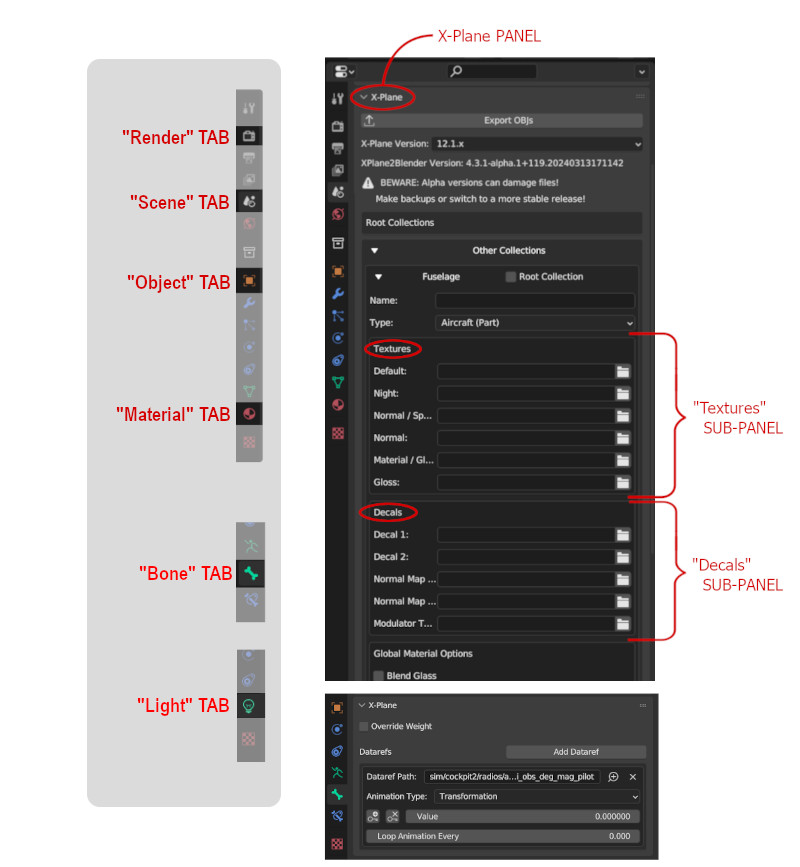

The XP2B export scripts create X-Plane panels and widgets on six (6) Property Tabs in Blender. The six tabs where these panels may be found are shown below (red text). Each panel created by XP2B will be titled "X-Plane" and may be collapsed like any other Blender panel.

The image below illustrates an example X-Plane panel UI containing various widget types and some of the terminology we may use in the docs to describe these areas.
